Iron core winding machine, let me tell you about battery winding machine!

According to the operation mode of the machine, winding machines can be divided into manual winding machines, semi-automatic winding machines, and fully automatic winding machines. For lithium battery winding machines and capacitor winding machines, buyers usually classify them according to their place of origin, mainly including domestic winding machines, Korean winding machines, and Japanese winding machines. Small scale battery manufacturers generally choose domestic winding machines mainly because of their low prices.
1、 Purpose:
Lithium battery winding machine is used for semi-automatic winding of lithium-ion battery cells; Suitable for oil-based electrodes, water-based electrodes, and various separators;
2、 8 characteristics of lithium battery winding machine equipment
1. Manual polarizer, automatic winding, automatic needle changing, automatic tape termination, and automatic material unloading;
2. The equipment is easy to operate and the training time for workers is short;
3. The tension of the polarizer and diaphragm is easy to adjust;
4. The tension of the polarizer and diaphragm is constant, the consistency of the battery cells is good, and a vacuum cleaning device is also installed;
5. The equipment debugging time is short, the materials are saved, and the changeover and adjustment are convenient;
6. With high quality performance price ratio, it is a high-quality battery cell production model suitable for China's national conditions;
7. It is an ideal equipment for lithium-ion battery manufacturing enterprises to improve product quality;
8. Low equipment failure rate and easy maintenance.
3、 Technical parameters of lithium battery winding machine equipment
Control mode: touch screen operation interface, working parameters can be freely set;
Production mode selection: pole entry method selection: first enter the positive electrode and then enter the negative electrode; Insert the negative electrode first and then the positive electrode; Positive and negative poles enter simultaneously;
Outsourcing ending method: can choose (positive or negative) pole piece outsourcing and diaphragm outsourcing;
Winding mode: constant angular velocity mode or constant linear velocity mode;
Features: Stable operation, easy debugging, and simple operation.

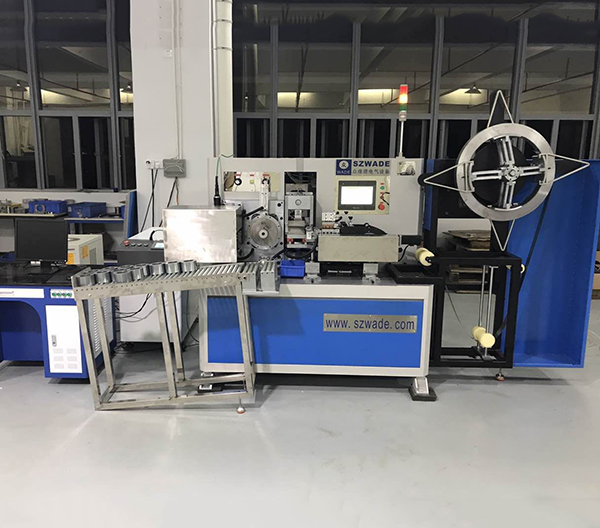

The lithium battery fully automatic winding machine is suitable for fully automatic winding of circular power lithium battery cells.
1. Adopting AC servo motor drive and tension control for unwinding, with adjustable tension.
Both unwinding and winding have correction devices.
3. Automatic correction, linear guidance, and positioning of the polarizer before being fed into the chuck to ensure the quality of winding.
4. The polarizer is equipped with a magnetic cleaning device, static electricity removal device, dust brushing and suction device, and can be recycled.
5. The positive or negative pole can be adjusted first.
6. It has two methods of membrane wrapping and electrode wrapping.
7. The detection device monitors the working and operating status, and automatically alarms and shuts down if there are any abnormalities.
8. PLC control system, touch screen display, easy to set and operate.
9. Automatic conveying of finished products, with a reasonable structure.
