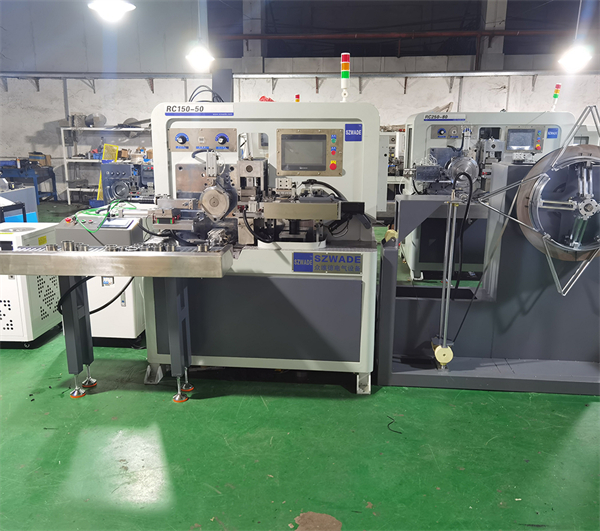

Equipment Name: Computer-controlled Automatic Iron Core Rolling Machine (5-axis)
Equipment model: RC150-50
Device dimensions: 180CM * 105CM * 170CM
Equipment weight: 1050KG
Power supply specification: 380VAC 50/60HZ
Power consumption: 1000W
Air pressure: 8KG
Interface Introduction: Simplified Chinese
Production function: Circular square shape
Number of servo axes: 5 axes
Minimum inner diameter: 20mm
Maximum inner diameter: 100mm
Maximum outer diameter: 150mm
Steel sheet width: 8 - 50 mm
Steel sheet thickness: 0.15 - 0.35 mm
The accuracy on both sides of the core is: < 0.1mm
Outer diameter of the discharge rack: 1000mm
|
