Iron core vacuum annealing furnace
Iron core vacuum annealing furnace
Equipment core information
Overall configuration

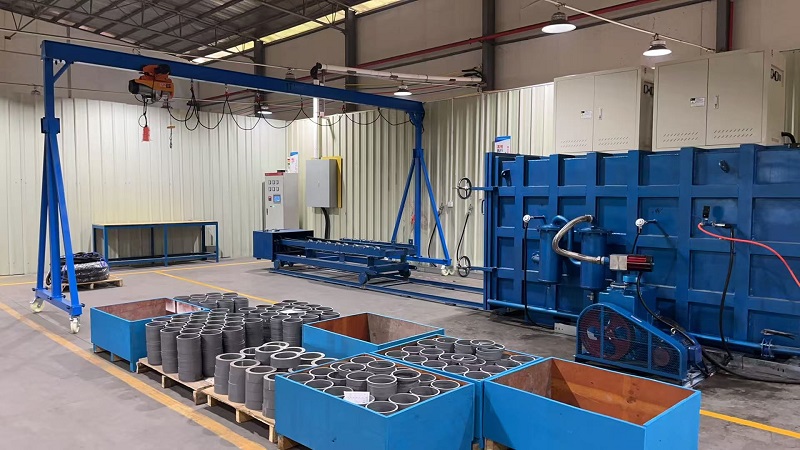

Large long cavity vacuum annealing furnace+automatic track trolley feeding and unloading+gantry lifting equipment, complete set of professional heat treatment production line for circular iron core
core purpose
Batch processing of silicon steel/amorphous ring iron cores for transformers and transformers, high-temperature vacuum oxygen free annealing, eliminating winding and cutting processing stresses, significantly reducing iron loss, improving core magnetic properties and electrical stability, without oxidation or damage to silicon steel insulation coatings.
Structural advantages
Ultra long furnace cavity, large loading capacity, suitable for centralized annealing of large quantities of circular iron cores
The rail car is fully automatic for pushing and pulling in and out of the furnace, and is equipped with a gantry crane for easy loading and unloading of heavy workpieces
Complete vacuum unit+inert gas protection, intelligent and precise temperature control, uniform furnace temperature, and extremely high consistency of finished products
Below the screen is the annealed finished circular iron core
