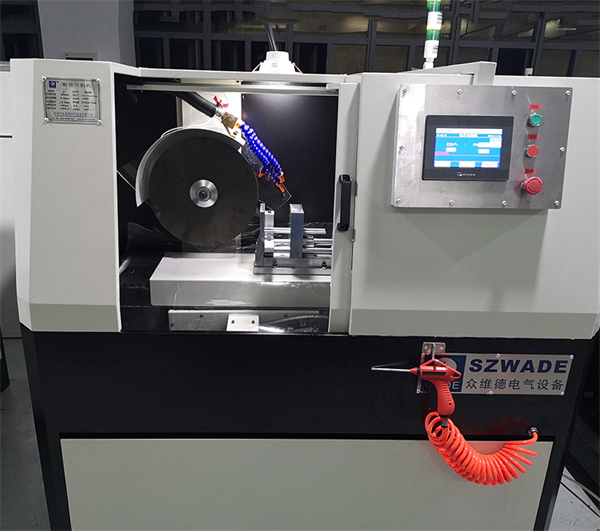

Silicon steel core cutting machine

Introduction to the Silicon Steel Core Cutting Machine:
CNC cutting machine, offering high precision, high efficiency, and reducing post-processing costs and labor requirements.
② The machine is easy to operate and understand. Both the X-axis and Y-axis use servo motors to ensure the stability of the cutting feed. The Z-axis uses a regular speed control motor, which is convenient for adjusting the height of the cutting spindle.
③ The human-machine interface is clear and easy to understand. The control system is equipped with multiple automatic calculation functions. Just input the required cutting width, and after the cutting is completed, the equipment can automatically move to the cutting position for the next cut.
A brief introduction to the silicon steel core cutting machine:
① First axis: X-axis moving servo motor, used for positioning movement in the X direction, with a travel of 150mm.
② Second axis: Y-axis moving servo motor, used for the cutting feed in the Y direction, with a travel of 500mm.
③ Third axis: The adjustment of the Z-axis cutting height movement, which is used to facilitate the adjustment of the height travel of the cutting axis (300mm).
④ Fourth axis: Cutting spindle. During the production process, it is responsible for the high-speed rotation of the spindle. The spindle speed can be controlled within any speed ranging from 1000 rpm to 3000 rpm.
⑤ Fifth axis: Cooling motor, responsible for the water pump motor that cools the iron core during the cutting process.
⑥ This machine is equipped with a high-performance Panasonic PLC control system. The output pulses are accurate, and the operation speed is faster and more stable. Multiple calculations can be written into the program, which can significantly reduce the debugging time for operators. All actions of the entire machine have self-protection programs to prevent unnecessary damage. The human-machine interface uses a 7-inch color screen from Taiwan Weilun, and the interface is clear, simple, and easy to understand.
⑦ The precision ball screws are all made from well-known brands from Taiwan, providing excellent accuracy and durability.
Technical specifications of the silicon steel core cutting machine:
Silicon steel core cutting machine equipment name: CNC cutting machine; Equipment model: WD150; Equipment size: 170CM * 130CM * 150CM; Equipment weight: 600KG; Power supply specification: 380VAC 50/60Hz; Power consumption: 1000W; Interface introduction: Simplified Chinese; Number of servo axes: 2 axes; Maximum outer diameter of iron core to be cut: 150mm; Minimum cutting gap: 1mm; Cutting accuracy: ≥ 0.15mm; Maximum outer diameter of cutting blade: 350mm; Cutting smoothness: ≥ RY0.8
