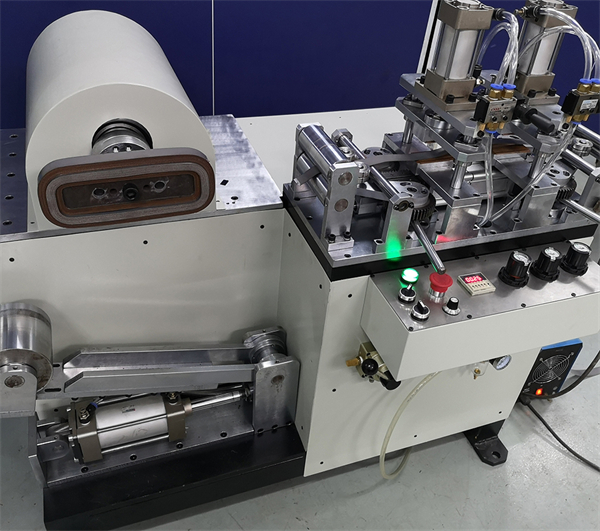

Stepped-core winding machine

Equipment brand: SZWADE

Equipment origin: Shenzhen, China
Device name: R-type rolled iron core machine
Device model: R600-10
Device dimensions: 165CM * 95CM * 100CM
Equipment weight: 600KG
Power supply specification: 380VAC  50/60HZ
Power consumption: 1000W
Air pressure: 8KG
Number of axes: 2 axes
Minimum inner diameter: 50mm
Maximum inner diameter: 400mm
Maximum outer diameter: 600mm
Steel sheet width: 20 - 100 mm
Steel sheet thickness: 0.23 - 0.35 mm
The accuracy on both sides of the core is: < 0.2mm
