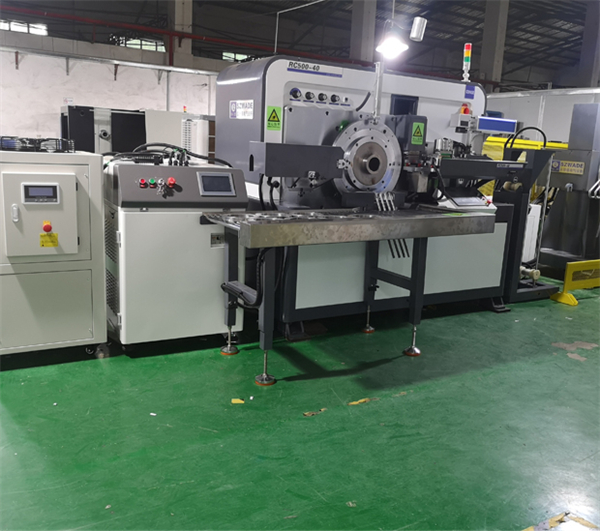

RC500-80 Silicon Steel Core Spooling Machine

Equipment brand: SZWADE

Device Name: Silicon Steel Coil Core Machine

Equipment model: RC500-80

Device dimensions: 225CM * 150CM * 190CM

Equipment weight: 2800KG

Power supply specification: 380VAC 50/60HZ

Power consumption: 1000W

Air pressure: 6 - 7 kilograms per square centimeter

Interface Introduction: Simplified Chinese. English interface

Production function: Circular, partially square

Number of servo axes: 6 axes

Minimum inner diameter: 50mm

Maximum inner diameter: 180mm

Maximum outer diameter: 500mm

Steel sheet width: 10 - 80mm

Steel sheet thickness: 0.15 - 0.5mm

Precision on both sides of the iron core: < 0.1mm

Discharge machine: Equipped with machinery

Maximum material outer diameter: 1200mm

Inner diameter expansion range: 450 - 520mm

Maximum load: 1T

Maximum discharge speed: 200m/min
