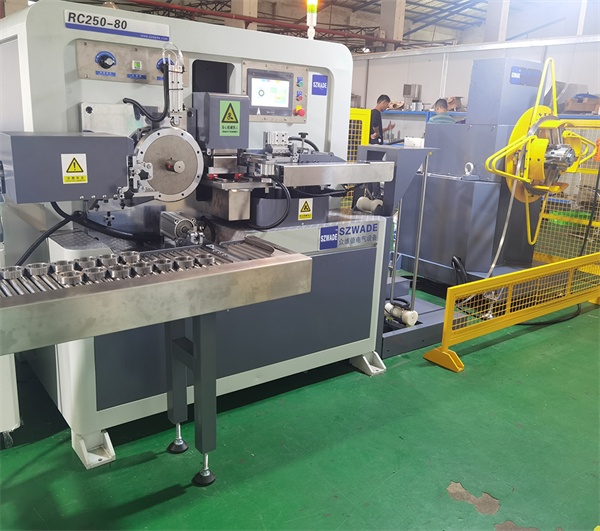

RC250-80 Silicon Steel Coil Winding Machine

Equipment brand: SZWADE

Equipment origin: Shenzhen, China
Device Name: Computer Automatic Coil Iron Core Machine
Equipment model: RC250-80
Device dimensions: 195CM * 120CM * 180CM
Equipment weight: 1800KG
Power supply specification: 380VAC  50/60HZ
Power consumption: 1000W
Air pressure: 7KG
Interface Introduction: Simplified Chinese
Production functions: Circular, partially square, irregular shape
Number of servo axes: 6 axes
Minimum inner diameter: 30mm
Maximum inner diameter: 180mm
Maximum outer diameter: 250mm
Steel sheet width: 10 - 80 mm
Steel sheet thickness: 0.15 - 0.5 mm
The accuracy on both sides of the core is: < 0.1mm
Discharge machine: Equipped with machinery
Maximum material outer diameter: 1200mm
Inner diameter expansion range: 450 - 520mm
Maximum load: 1T
Maximum discharge speed: 200 meters per minute
